當前位置： AK-GSGL鼓式過濾機
2025-07-26AK-YC系列 永磁排屑機
AK-YC Magnetic Chip Conveyor
一、性能、特點及用途--Performance,characteristics and application
適用于鑄鐵材質的加工和鋁材質的大顆粒物工況
，適用于鋁、鑄鐵等較為細小的工況。It Is Suitable For The Processing Of Cast Iron Material And The Condition Of Large Particulate Matter Of Aluminum Material, And Is Suitable For The Relatively Small Working Condition Of Aluminum And Cast Iron.

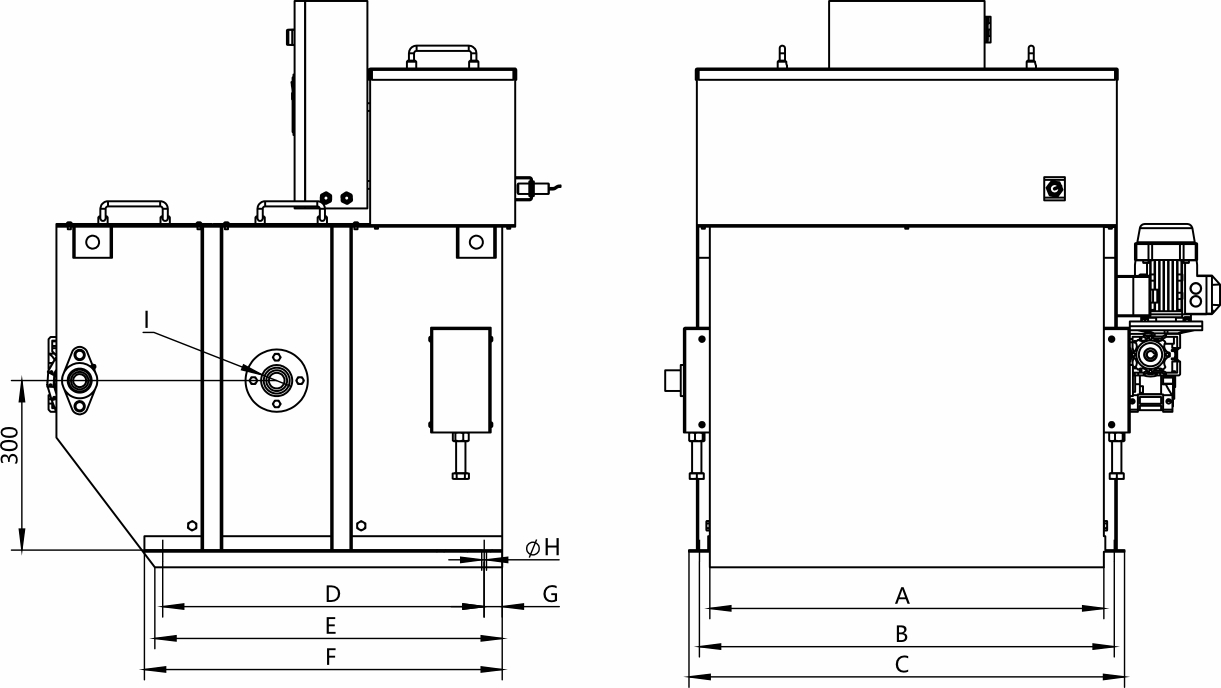

二、主要技術參數與選型--Main technical parameter and selection
名稱 Name | 型號 Number | A | A1 | A2 | B | B1 | B2 | C | D | G | 流量Flow Rate (L/min) | 濾紙寬度 Width of paper (mm) | 電機功率 P(kW) Motor Power P(kw) | |
| 切削液 | 切削油 | |||||||||||||
| AK-GSGL鼓式過濾機 | AK-GSGL200 | 720 | 770 | 800 | 630 | 800 | 730 | 800 | 4-φ12 | DN65 | 200 | 150 | 720 | 0.18 |
| AK-GSGL300 | 710 | 760 | 810 | 900 | 1080 | 1080 | 90 | DN150 | 300 | 200 | 720 | |||
| AK-GSGL500 | 990 | 1040 | 1090 | 500 | 350 | 1000 | ||||||||
| AK-GSGL750 | 1190 | 1240 | 1290 | DN200 | 750 | 500 | 1200 | |||||||
| AK-GSGL1000 | 1390 | 1440 | 1490 | 1000 | 700 | 1400 | ||||||||
