AK-CX Magnetic Separator
一、性能、特點及用途--Performance,characteristics and application
適用于碳鋼類金屬的磨削
，鑄鐵類加工的輕切削工況，無磁性顆粒不可使用。Suitable For The Grinding Of Carbon Steel Metals, Cast Iron Processing Of Light Cutting Conditions, Non magnetic Particles Can Not Be Used.

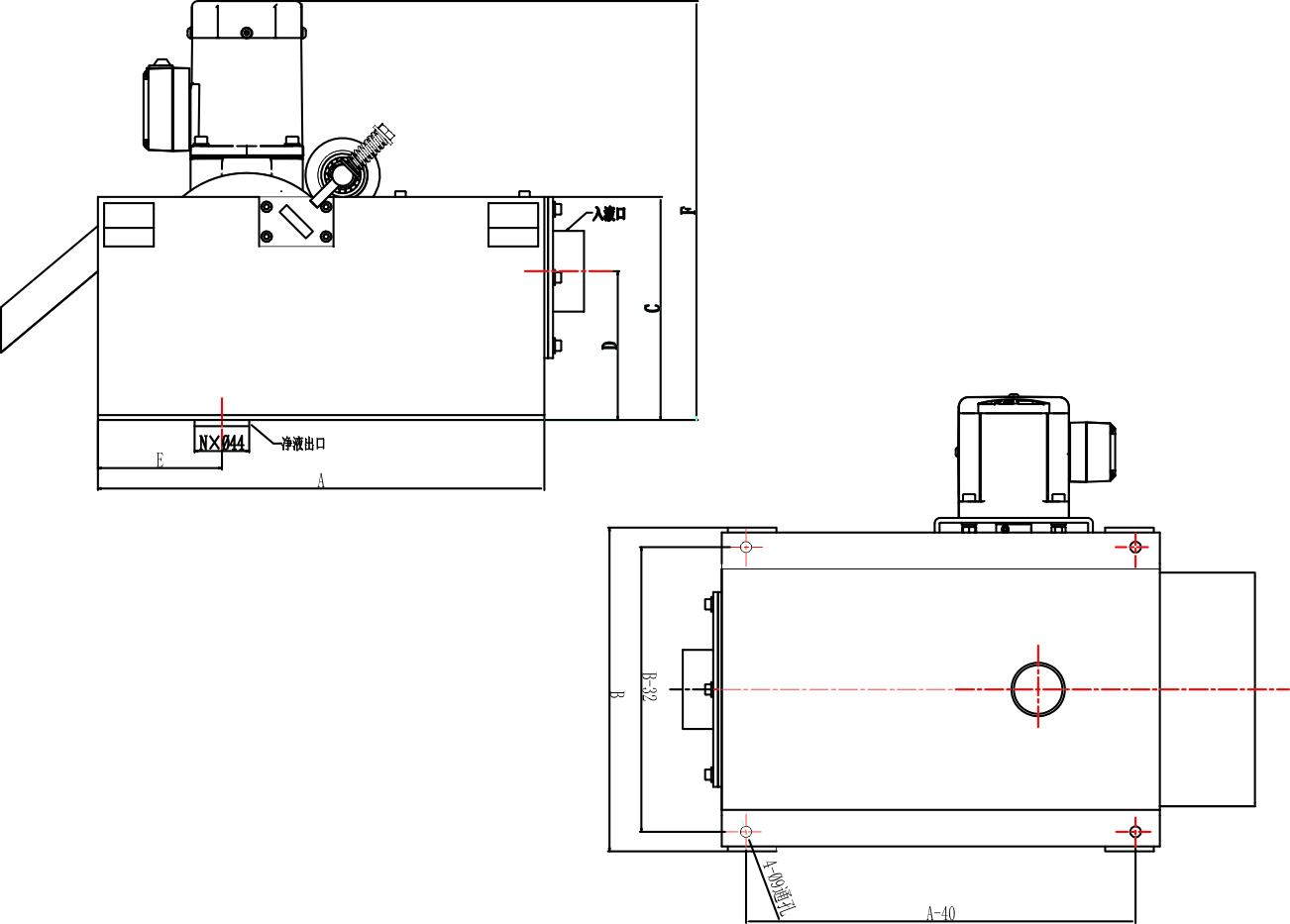

二、主要技術參數與選型--Main technical parameter and selection
名稱 Name | 型號 Number | A | B | C | D | E | F | 外螺紋進液口 External threaded Inlet | N | 流量(L/min) Flow Rate(L/min) | 電機功率 P(kW) Motor Power P(kw) |
| AK-CX磁性分離器 | AK-CX-25 | 320 | 276 | 170 | 130 | 120 | ≦350 | G1吋 | 1 | 25 | 0.06 |
| AK-CX-50 | 336 | G1-1/2吋 | 50 | ||||||||
| AK-CX-75 | 406 | 75 | |||||||||
| AK-CX-100 | 456 | G2吋 | 100 | ||||||||
| AK-CX-150 | 450 | 606 | 2 | 150 | |||||||
| AK-CX-200 | 656 | 200 | |||||||||
| AK-CX-250 | 550 | 706 | G1-1/2吋 | 250 | 0.1 | ||||||
| AK-CX-300 | 756 | 300 | |||||||||
| AK-CX-400 | 856 | G3吋 | 3 | 400 | |||||||
| AK-CX-500 | 956 | 500 |
