當前位置： AK-WX渦旋分離器
2025-07-26AK-WX渦旋分離器
AK-WX Vortex Separator

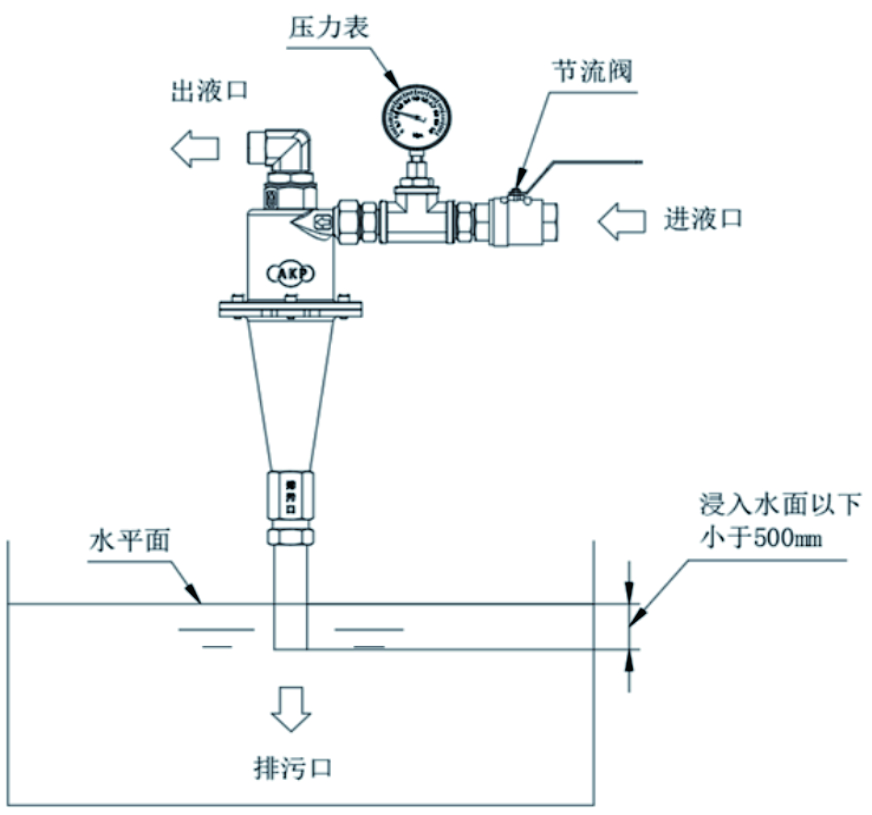

一 渦旋分離器利用一定的壓力將含有顆粒雜質的液體高速注入錐體內，使液體在錐體內產生外渦流 The Vortex Separator uses a certain pressure to inject the liquid containing particle impurities into the cone at a high speed, so that the liquid generates external eddy currents in the cone. the solid particles in the liquid are thrown to the inner wall of the cone under the action of centrifugal force and discharged along the inner wall by the bottom flow port under the drive of gravity and liquid. the separated clean liquid spirals up along the axis of the cone after reaching the bottom of the cone. the internal vortex is formed and discharged by the outlet of the vortex separator, so as to achieve the separation of dirty liquid and clean liquid. suitable for separating particles in high speed grinding, strong grinding, general finishing coolant and low viscosity oil-based coolant. the vortex separator can be used in parallel to increase the flow rate, and can also be used in series to improve the filtration accuracy. 二、主要技術參數與選型--Main technical parameter and selection 供給液體 (L/min) 干凈液體 (L/min) 供給液體 (L/min) 干凈液體 (L/min) 供給液體 (L/min) 干凈液體 (L/min) 供給液體 (L/min) 干凈液體 (L/min) 供給液體 (L/min) 干凈液體 (L/min) 型號 Model Number 重量 Kg G1 1/4 G1 1/2 G1 1/2、性能、特點及用途--Performance,characteristics and application
，分離后的潔凈液體到達錐體底部后沿錐體的軸線螺旋上升，形成內渦流，由渦旋分離器的出口排出，從而達到臟液與凈液的分離。適用于分離高速磨削、強力磨削、一般的精加工的冷卻液及低粘度的油基冷卻液中的顆粒。渦旋分離器可并聯使用以增大流量，也可串聯使用提高過濾精度。

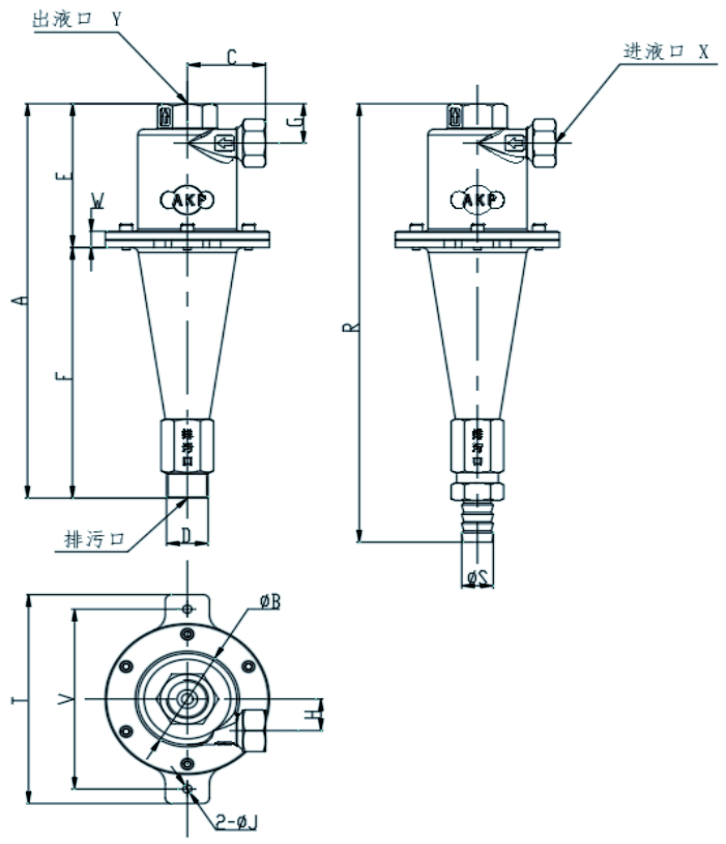

AKWX-30 AKWX-50 AKWX-60 AKWX-120 AKWX-200 揚程(M) 15 33 30 60 54 67 60 367 330 366 329 20 40 36 60 54 83 75 300 270 300 270 30 33 30 53 48 72 65 300 270 300 270 A B C D E F G H J R S T V W X Y AK-WX-30 250 65 50 G1/2 90 160 35 23 7 288 19 130 100 14 G1/2 G3/4 2.1 AK-WX-50 323 85 58 G1 97 226 38 27 7 371 25 130 100 8 G1/2 G1 3.4 AK-WX-60 340 78 62 G1 124 216 34 27 7 378 25 180 155 14 G3/4 G1 3.5 AK-WX-100 460 110 75 G1 133 326 39 38 10 498 25 145 120 16 G1 5.9 AK-WX-200 600 160 160 G1 3/4 225 375 50 62 13 638 32 210 170 18 11
